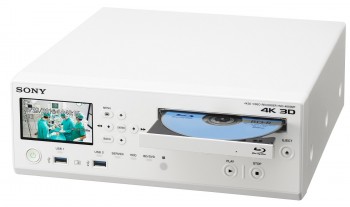

SONY HVO-4000MT Medical 4K 3D Video Recorder Βρίσκεστε εδώ: MedLand / Video Recorders / Video Recorders / SONY HVO-4000MT Medical 4K 3D Video Recorder
SONY HVO-4000MT Medical 4K 3D Video Recorder InformationSupporting healthcare professionals throughout their workflowThe Sony HVO-4000MT is already firmly established as the most versatile, feature-rich 4K 2D and 3D medical recorder in its class. With the addition of DICOM Modality Work List support for a smooth metadata workflow and an HD input for flexible video integration, it’s now an even more compelling choice for clinical teams. Integrated 4K workflowThe HVO-4000MT records 4K video and still images in 2D or 3D from endoscopic/laparoscopic cameras, surgical microscopes and other compatible imaging systems. Video files can be stored simultaneously on the recorder’s hard drive and external media or IP network server for patient records, training and education. The recorder simultaneously creates a Full HD copy of 4K source content for easy sharing and viewing on our 4K surgical monitors. Capture your procedures 4K, 3D or 4K 3DIdeal for documenting critical or rare cases or for training and education purposes, the HVO-4000MT supports both 4K resolutions of 4096 x 2160 (True 4K) as well as 3840 x 2160 (4K UHD) and records them using the state-of-the-art Sony XAVC codec standard based on H.264/AVC format. Users can select bitrate range of 150, 100 or 60Mbps, depending on their requirements for picture quality and recording length. The HVO-4000MT goes further towards future-proofing your workflow – supporting 4K 3D input as well (Line-by-Line and Top-and-Bottom). 3D signals are always recorded in top-and-bottom with a resolution of 3840×2160 and at 59.94p/50p. Still images also can be saved any time during the procedure recording in 2D or in 3D format. Patient information input via DICOM MWLSupport for DICOM Modality Work List allows automatic input of patient information from RIS or other DICOM worklist-servers via the hospital network. Hospital staff no longer need to manually key-in patient information data before surgery, avoiding human error and saving time. (Requires firmware version 1.2 or later). Simultaneous recording via networkThe recorded data can be transferred from the operating room to computers via CIFS protocol over the network, for convenient and centralised storage and sharing. This can be done during the recording itself allowing users to access recorded files quickly after a recording is complete. Data transfer via CIFS can also be done at any other point in time from the recording list. This eliminates the additional step of users having to transfer recordings onto their PC using an external media source and enables an effective network base for video sharing. Multiple remote-control connectivityBesides the supplied infrared remote controller and optional touch monitor, the HVO-4000MT can be controlled via contact switches, such as buttons on endoscopes. Also, a USB keyboard can control a series of functions using function keys. Key assignment is fully configurable. For in-depth integration into complex modality workflows, remote control is possible via command protocol using either the RS-232C or the USB interface. Touch panel supportAdding an optional external touch panel monitor simplifies data input and operation (e.g., entering the patient’s ID, name, gender and date of birth). The touch is also very useful for quick preview and playback of recorded video plus an easy and quick access to recording list and settings. 4K/FHD simultaneous recordingHVO-4000MT is able to record FHD images from 4K images internally. This is particularly useful when balancing the need for the higher resolution 4K images, with the more common daily use of FHD videos. HVO-4000MT provides the solution to meet this dual demand. SONY HVO-4000MT Medical 4K 3D Video Recorder SpecificationsRecording FeaturesRecording Video Format
MPEG-4 AVC/H.264
Recording Audio Format
LPCM, AAC LC
Recording File Format
XAVC S, MP4
Recording Media
Internal HDD (4TB)
External USB Storage Network (CIFS) DVD-R BD-R/BD-R DL BD-RE/BD-RE DL Input Resolution
4096x2160
3840x2160 Recording Resolution
3840x2160
1920x1080 Recording Bit Rate (4K)
150Mbps (Best)
100Mbps (High) 60Mbps (Standard) Recording Bit Rate (HD)
24Mbps (Best)
18Mbps (High) 12Mbps (Standard) 3D Recording
Line by Line

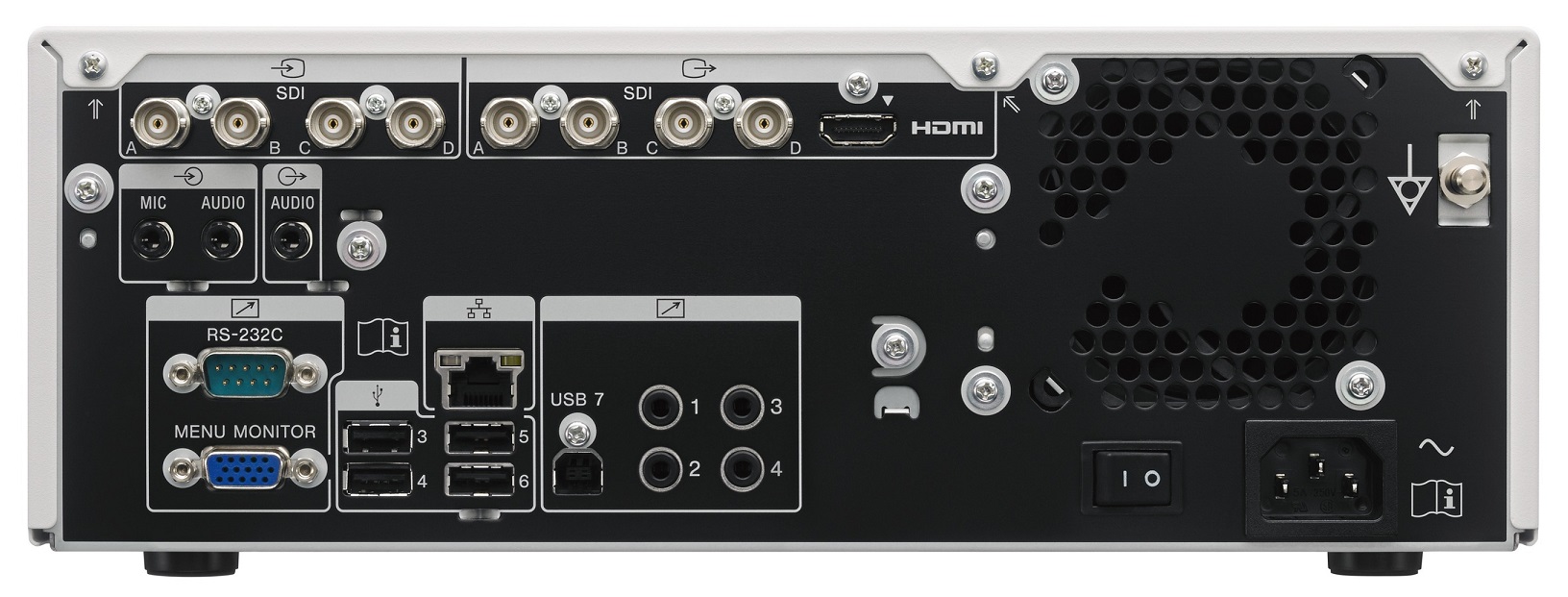

Top and Bottom ConnectorsInput Connectors
3G-SDI (BNC type) (4)
AUDIO (Stereo mini jack) (1) MIC (Sterao mini jack)(1) AC Inlet (3-pin) (1) Output Connectors
3G-SDI (BNC type) (4)
HDMI (Type A) (1) AUDIO (Stereo mini jack) (1) Other Interfaces
USB 3.0 (Type A) (2)
USB 2.0 (Type A) (4) USB 2.0 (Type B) (1) Network (RJ-45, 1000 Base-T/100 Base) (1) REMOTE RS-232C (D-sub 9-pin) (1) REMOTE contact switch (stereo mini jack) (4) Equipotential GeneralPower Requirements
100 V to 240 V AC, 50/60 Hz
Input current
1.25 to 0.52 A
Operating Temperature
5 °C to 40 °C
(41 °F to 104 °F) Operating Humidity
20% to 80% (Maximum wet-bulb temperature: 30 °C (86 °F)) (no condensation)
Operating Pressure
700 hPa to 1060 hPa
Storage and transport temperature
-20°C to +60°C
-4°F to +140°F Storage and transport humidity
20% to 90% (Maximum wet-bulb temperature: 30 °C (86 °F)) (no condensation)
Storage and transport pressure
700 hPa to 1060 hPa
Mass
Approx.6.5 kg
Approx. 14 lb. 5.3oz. Dimensions (W x H x D)
305.0 x 115.5 x 329.0 mm (including longest protrusions)
12 1/8 × 4 5/8 × 13 in. (including longest protrusions) Supplied Items
Before Using This Unit (1)
CD-ROM (Instructions for Use, PROTOCOL MANUAL) (1) Warranty booklet (1) Service Contact List (1) Infrared remote control unit (RM-M010) (1) Separately-Sold Accessories
Foot Switch (FS-24) *1
Compliance with Medical Safety Standards
Yes
Notes*1
The FS-24 has an Ingress Protection rating of IPx3. Therefore, do not operate it environments exposed to splashing liquids(e.g.,surgical operating rooms). For safety, use a device with a rating of IPx6 or higher when operating in such environments.
